Bear Cat CH45540

Call for Price
Overview

MAINTAIN POWER. REDUCE MAINTENANCE.

Using a Crary® Bear Cat® PTO machine reduces engine maintenance, giving you more uptime to work. With a  wide selection of PTO machines ready to go to work for you, it’s time to match your tractor with a Crary Bear Cat PTO Chipper and Chipper/Shredder.

The Crary® Bear Cat® CH45540 is the perfect match for your compact tractor. It’s built with heavy-duty, 7-gauge steel. The 14″ x 1″ thick, 49 pound dynamically-balanced rotor utilizes two reversible heat-treated chipper blades and is driven by a double-banded belt for maximum power transfer. The cantilever mounted rotor design helps reduce wrapping while chipping wet, stringy wood types.

Also available is an optional 4″ x 4.5″ truckloading discharge chute with deflector cap. This optional chute directs the chips and raises the discharge of chips into the trailer or back of a pickup.

NOTE – For Use On Tractors with PTO Horsepower Ratings From 20 hp to 35 hp.

Specifications
Model
CH45540
Category Name
Agriculture
Year
2026
Sale Type
New
Manufacturer
Bear Cat
dimensions
L X W X H
40″ x 40″ x 44″
Rotor Size/Weight
Cantilevered 14″ x 1″ / 49 lbs.
Chipper Chute Throat
4.5″ x 4.5″
Chipper Chute Opening
13″ x 15″
Max Chipping Capacity
4.5″
power
PTO Input Power Range
20 – 35 hp
chipper
Weight
361 lbs.
Drive Type
Double-Banded Belt
Feed System
Gravity/Self Feed
Chipping Blades
2 Reversible Heat-treated

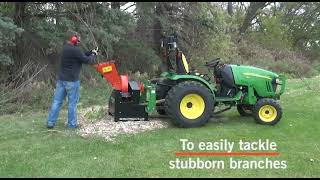

Videos
