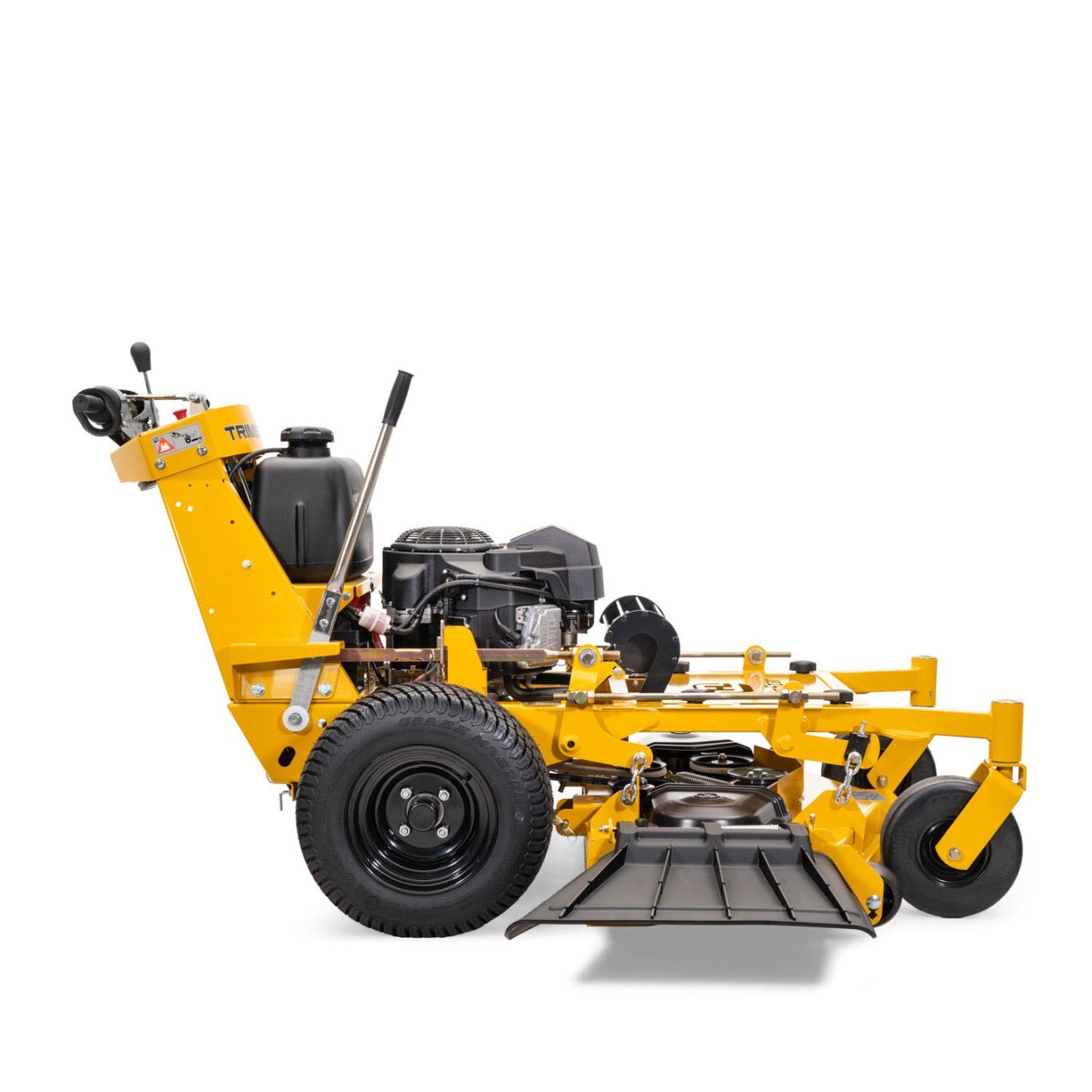

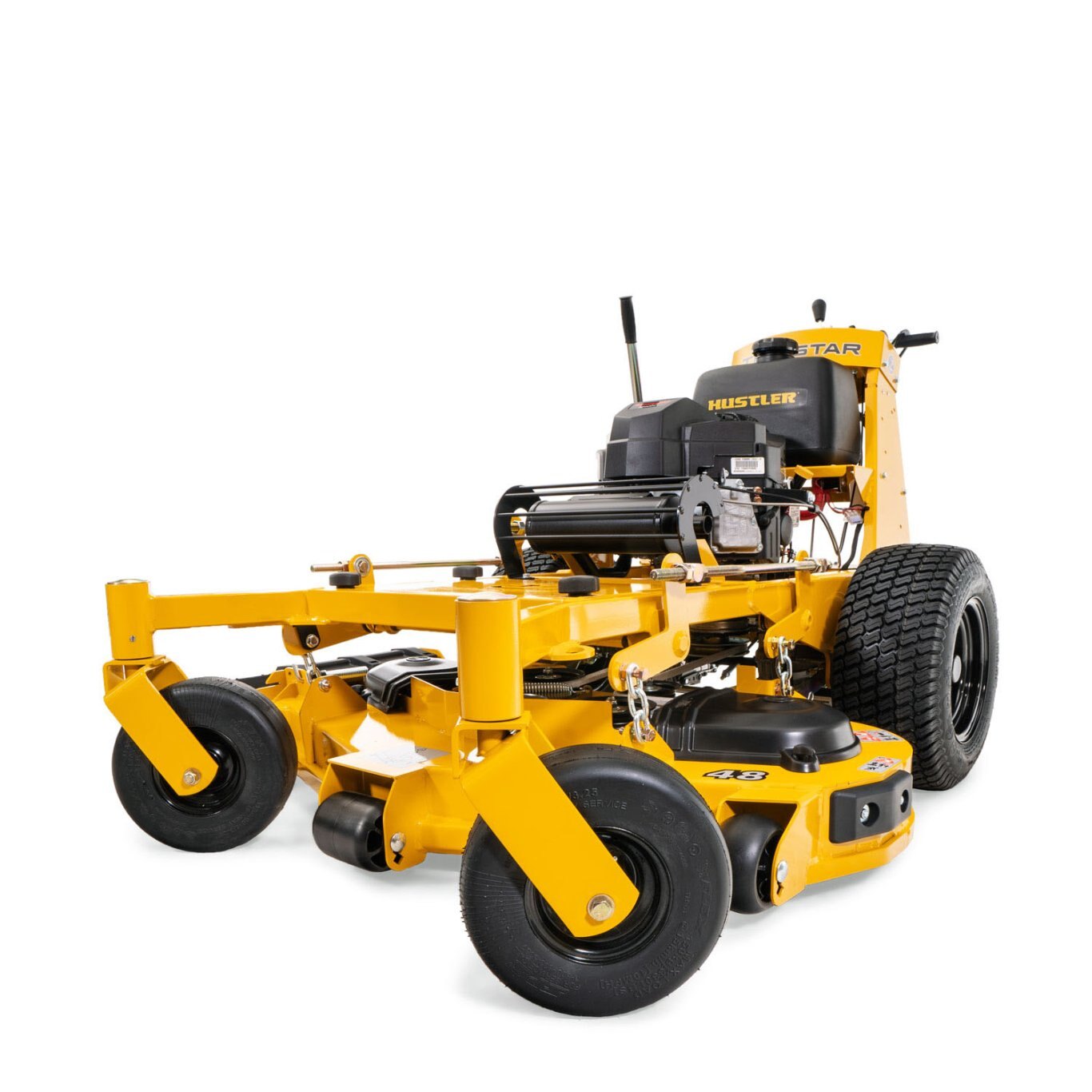

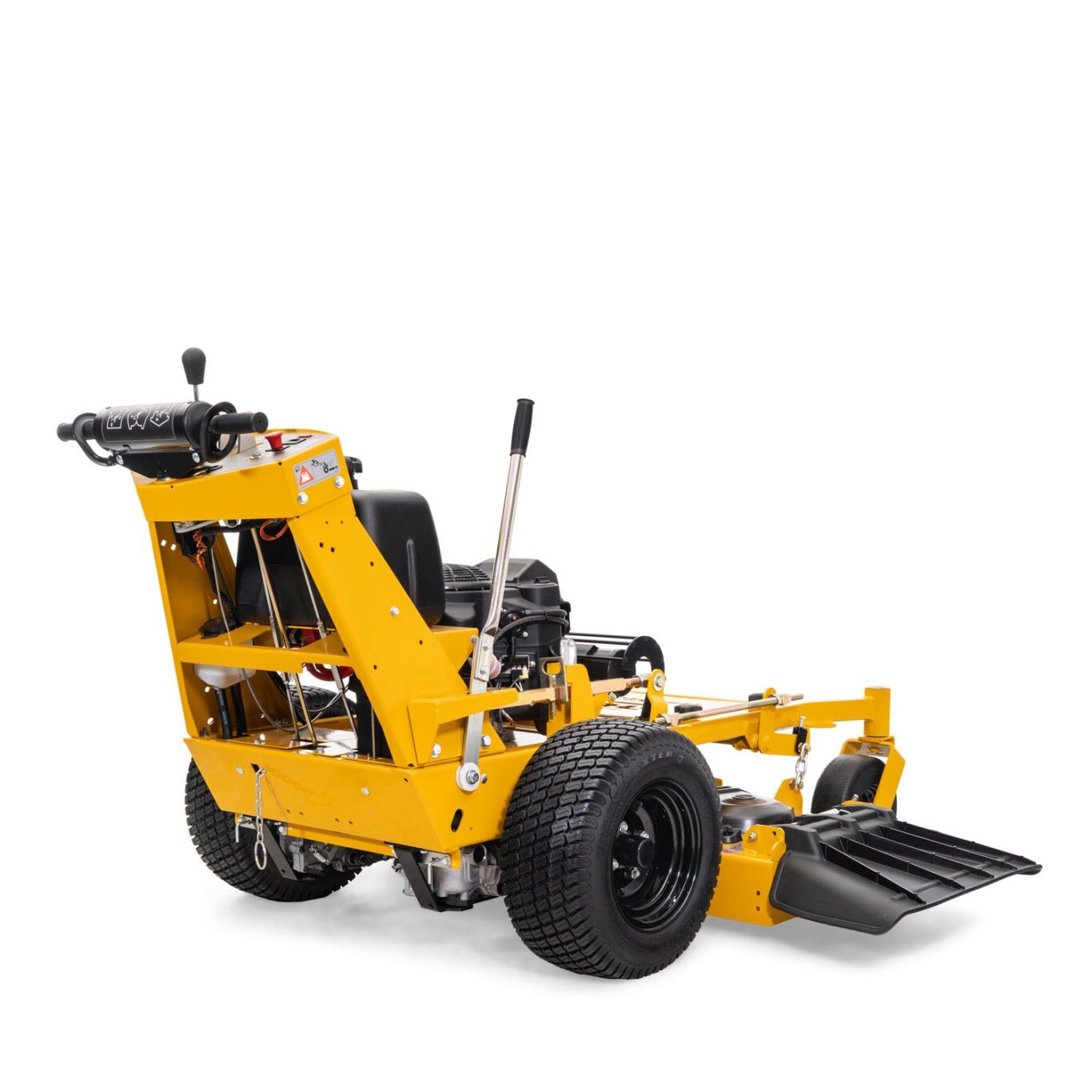

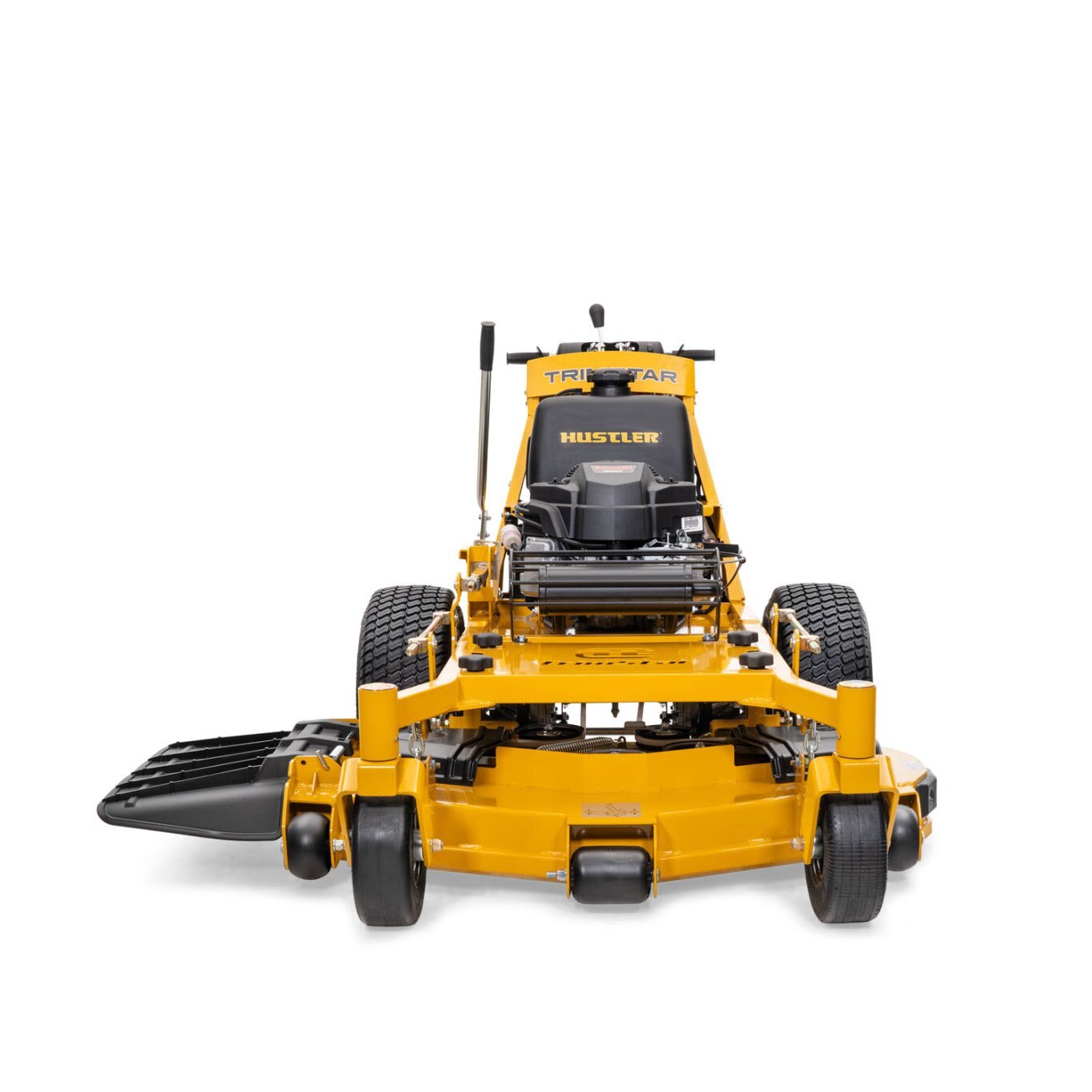

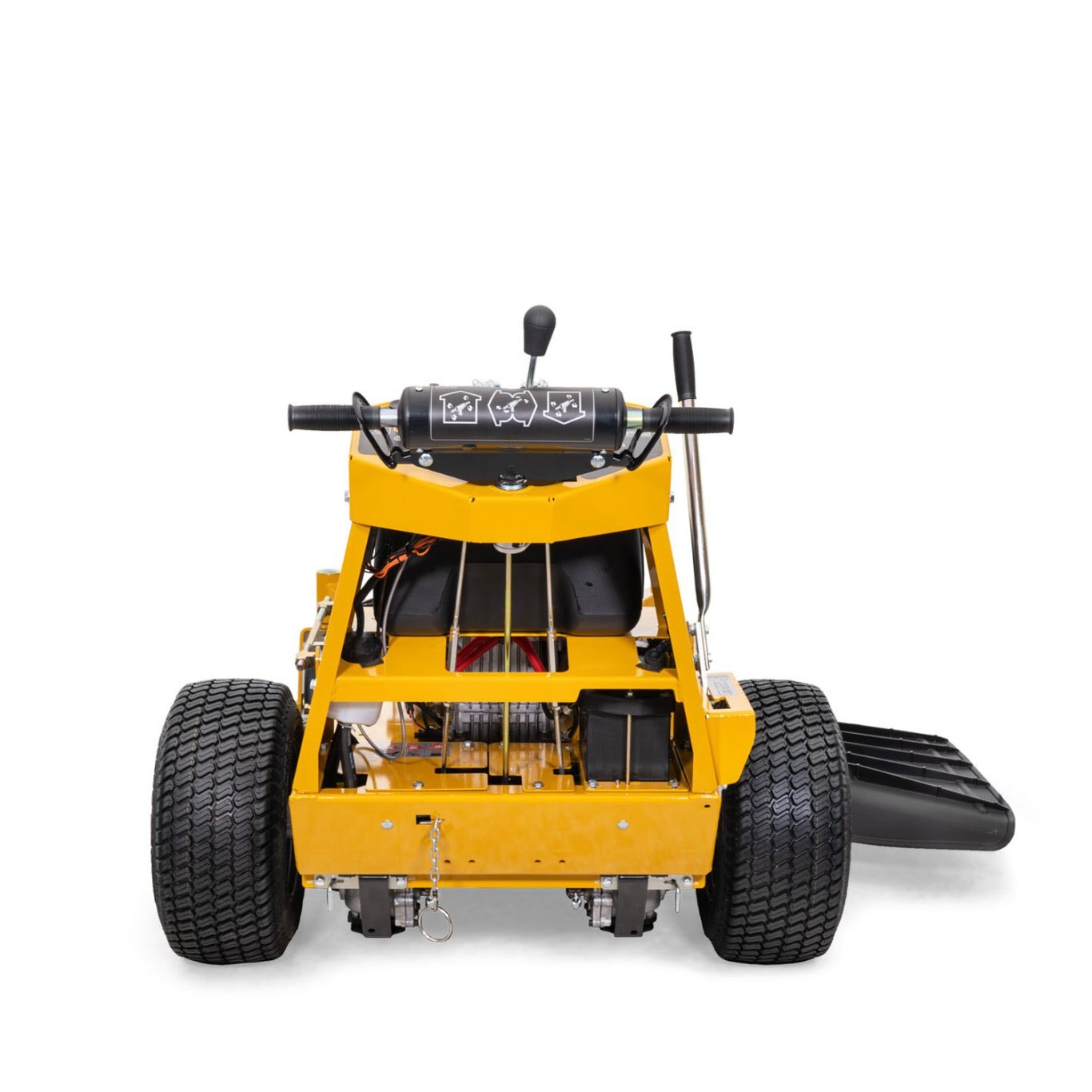

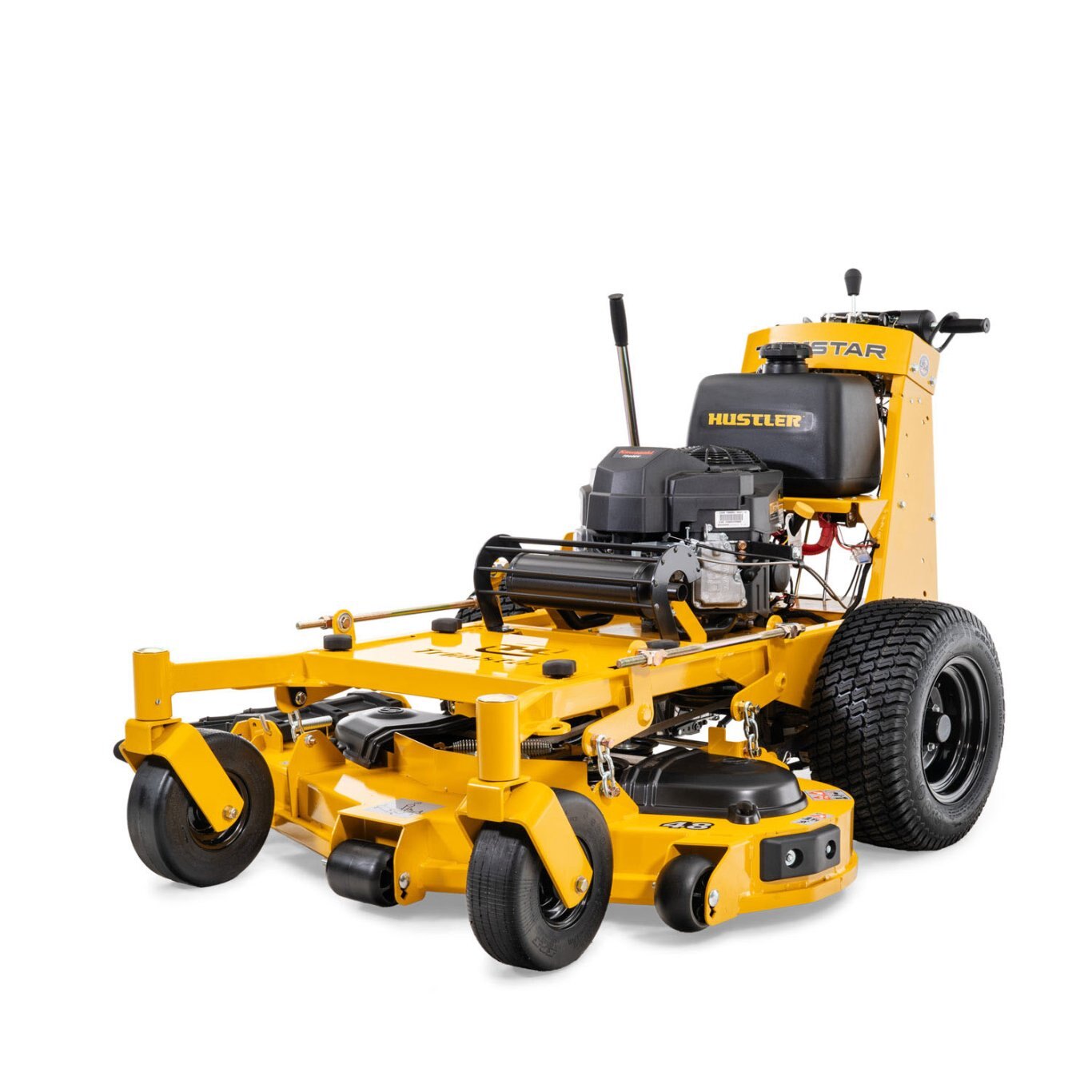

Hustler TrimStar-48"

Name: Hustler TrimStar-48"
Brand: Hustler
Availability: OutOfStock

Call Email

Call for Price

Contact Us Get Approved Value a Trade Get Directions Get Directions Print

Overview

A Walk-Behind With Maximum Stability, Ease-Of-Control.

Hustler's TrimStar® is a perfect addition to any commercial mower fleet. It makes access to hard-to-reach spots easy and is designed to help reduce operator fatigue.

15hp - 23hp Kawasaki Engines
36", 48", 54” & 60” decks
Up to 6.3 mph mowing speed
5 Year / 1200 Hour (First 2 Years No Hour Limit)

Engine	Deck Sizes
15HP - Kawasaki FS541 (Electric Start)	36”
18.5HP - Kawasaki FS600 (Electric Start)	48”
22HP - Kawasaki FS651 (Electric Start)	54”
23HP - Kawasaki FS691 (Electric Start)	60”

Specifications

Model

TrimStar

Category Name

Zero Turn Mowers

Year

2025

Sale Type

New

Manufacturer

Hustler

features

H-Bar® Steering

Patented steering is the easiest-to-use walk-behind system in the field, reducing operator fatigue.

Deck Lift

Easy-to-operate deck lift makes deck height adjustment a breeze.

Dual Hydro System

Heavy-duty traction and performance.

Service Friendly Design

Designed to make maintenance and service simple and easy.

Welded Steel Deck

Durable 10 ga. plus 11ga. reinforced steel with 11 ga. formed channel rolled edge. (36" deck model is 7ga. with 7ga. reinforced steel)

key specs

WARRANTY

5 Year / 1200 Hour (First 2 Years No Hour Limit)

DRIVE TIRE

20 x 8-10

FRONT TIRE

11 x 4-5

TRANSMISSION

Hydro-Gear ZT-2800®

CUTTING WIDTH

48"

FUEL CAPACITY

3.4 gal.

CUTTING HEIGHT

1.5" to 4.5"

ENGINE HORSEPOWER

18.5

GROUND SPEED (FWD)

Up to 6.3 mph

ENGINE MANUFACTURER

Kawasaki FS600

engine

COOLING

Air Cooled

AIR CLEANER

Oval canister, dual element

DISPLACEMENT

603cc

ENGINE WARRANTY

3 Year Limited

ENGINE HORSEPOWER

18.5

ENGINE MANUFACTURER

Kawasaki FS600

drive system

TYPE

Dual Hydrostatic

TRANSMISSION

Hydro-Gear ZT-2800®

FUEL CAPACITY

3.4 gal.

PARKING BRAKE

Internal transmission mechanical brake

HYDRAULIC COOLING

Pump mounted fan

GROUND SPEED (FWD)

Up to 6.3 mph

RESERVOIR CAPACITY

2 qts per side

deck

SPINDLES

Aluminum with steel shaft and sealed ball bearings

DECK LIFT

Hand Operated

DECK DEPTH

5"

BLADE LENGTH

16.50"

CUTTING WIDTH

48"

DECK MATERIAL

10ga + 11ga reinforced steel

CUTTING HEIGHT

1.5" to 4.5"

SPINDLE MOUNTS

Reinforced 11 ga.

BLADE TIP SPEED

18,500

DECK ENGAGEMENT

Electric PTO Clutch

IMPACT TRIM AREA

11ga formed channel rolled edge

NUMBER OF BLADES

2

construction

FRAME

1.5" x 2" steel tubing

FRONT AXLE

Fabricated with tapered roller bearings

FRONT CASTER FORK

Fabricated 3/8" steel

FRONT CASTER WHEEL

Tapered wheel bearings and debris cap

general

CUP HOLDER

dimensions

WEIGHT (LBS)

635

HEIGHT (INCHES)

42.5

LENGTH (INCHES)

75

DRIVE TIRE (INCHES)

20 x 8-10

FRONT TIRE (INCHES)

11 x 4-5

WIDTH W/ CHUTE UP (INCHES)

49

TIRE-TO-TIRE WIDTH (INCHES)

44

PRODUCTIVITY (ACRES PER HOUR)

2.44

warranty

Warranty

5 Year / 1200 Hour (First 2 Years No Hour Limit)

dimensions with catcher

CATCHER STYLE

Side Catcher

CATCHER CAPACITY

3.5 bushel

POWERED / NON-POWERED

Powered

MOWER WIDTH W/ CATCHER

68.7"

MOWER LENGTH W/ CATCHER

74.55"

literature

Name	Link
Specs PDF	Download
Brochure PDF	Download
