Overview

FS481V

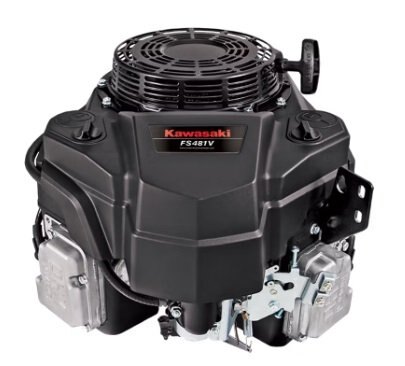

An absolute landscaping workhorse, the Kawasaki FS481V engine is a forced-air-cooled overhead V-valve 4-cycle engine capable of delivering compact power with surprisingly smooth operation and low emissions. Plus, this engine boasts Kawasaki Critical Power, SAE-Certified horsepower.
Specifications
Model
FS481V
Category Name
Engines
Year
2026
Sale Type
New
Manufacturer
Kawasaki
Displacement
603 cc (36.8 cu. in.)
Bore X Stroke
2.9 x 2.8 in. (73 x 72mm)
Maximum Power
14.5 hp (10.8 kW) at 3,600 RPM
Maximum Torque
30.9 ft-lbs (41.9 N·m) at 1,800 RPM
Compression Ratio
8.1:1
Number Of Cylinders
2
Oil Capacity W/filter
1.8 U.S. qt (1.7 liters)
Dry Weight (without Muffler)
80.9 lbs (36.7 kg)
features
  • Overhead V-valve
  • Integrated clean out ports
  • 90° V-twin
  • Pressurized lubrication system
  • Electronic spark ignition
  • Automatic compression release
  • Internally vented carburetor
  • Rotating grass chopper screen
  • Dual element air filtration system with reinforced primary filter
  • Cast-iron cylinder liners
