REDMAX HEZ230F 1.0HP 22.5CC EDGER

Model: RedMax HEZ230F

Product Description

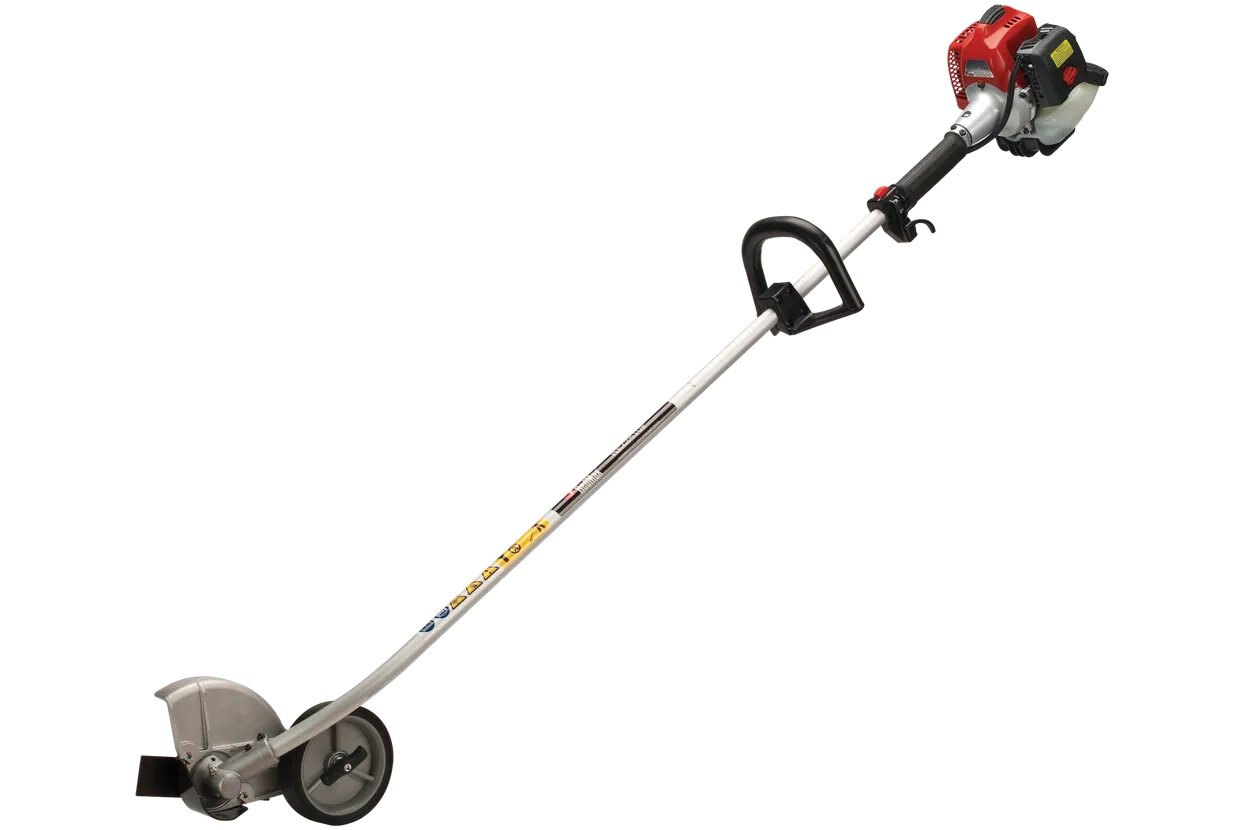

The RedMax HEZ230F is a curved-shaft stick edger designed for lawn edging applications. It uses a 22.5cc GZ22S air-cooled 2-stroke gasoline engine rated at 1.0 HP, providing a dedicated power unit for maintaining clean, defined lawn borders.

The HEZ230F uses a centrifugal clutch and flexible driveshaft with a 1.25:1 reduction ratio. Its 59.055-inch tube, 14-pound dry weight, loop handle, wheel, blade guard and 7.87-inch blade support controlled edging along sidewalks, driveways and landscape borders.

Key Features

• 22.5cc RedMax GZ22S 2-stroke gasoline engine
• 1.0 HP maximum output
• Curved-shaft stick edger design
• Lawn edging application
• Centrifugal clutch
• Flexible driveshaft
• 1.25:1 reduction ratio
• 21.6 fl. oz. fuel tank capacity
• 59.055-inch tube length
• 0.94-inch tube diameter
• 14 lb. dry weight, excluding cutting equipment
• 7.87-inch cutting blade
• Walbro diaphragm-type carburetor
• NGK BPMR8Y spark plug
• 3,000 ± 200 RPM idle speed
• 8,000 RPM maximum power speed
