TORO DINGO TX 1300 STANDARD BUCKET 4.3 CU. FT.

Model: 22345

Product Description

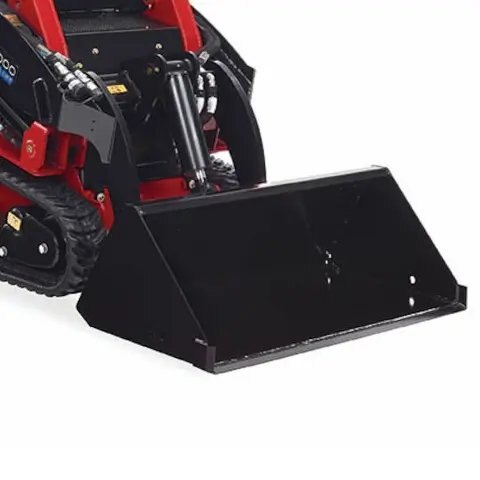

The Toro Dingo TX 1300 Standard Bucket 22345 is a 47.8-inch loader bucket attachment designed specifically for the Toro Dingo TX 1300 compact utility loader. With a 4.3-cubic-foot rated capacity, it is intended for moving rock, dirt, sand and other bulk materials on construction and landscaping job sites.

The bucket features fabricated, welded steel construction and a Toro Dingo quick-attach mounting plate. Its 177-pound attachment weight and 24-inch length provide a compact material-handling configuration. The bucket is designed exclusively for the TX 1300, with a maximum load capacity of 1,300 pounds when the loader arms are retracted.

Key Features

• Attachment Type: Standard loader bucket

• Rated Capacity: 4.3 cubic feet

• Bucket Width: 47.8 inches

• Bucket Length: 24 inches

• Bucket Height: 16.2 inches

• Attachment Weight: 177 lbs.

• Maximum Load: 1,300 lbs. with loader arms retracted

• Extended Load Capacity: 600 lbs. with loader arms extended

• Construction: Fabricated, welded steel frame

• Mounting System: Toro Dingo quick-attach mounting plate

• Mounting Frame: Fabricated, welded base

• Compatible Loader: Toro Dingo TX 1300, model 22370 only

• Intended Applications: Moving rock, dirt, sand and other bulk materials
