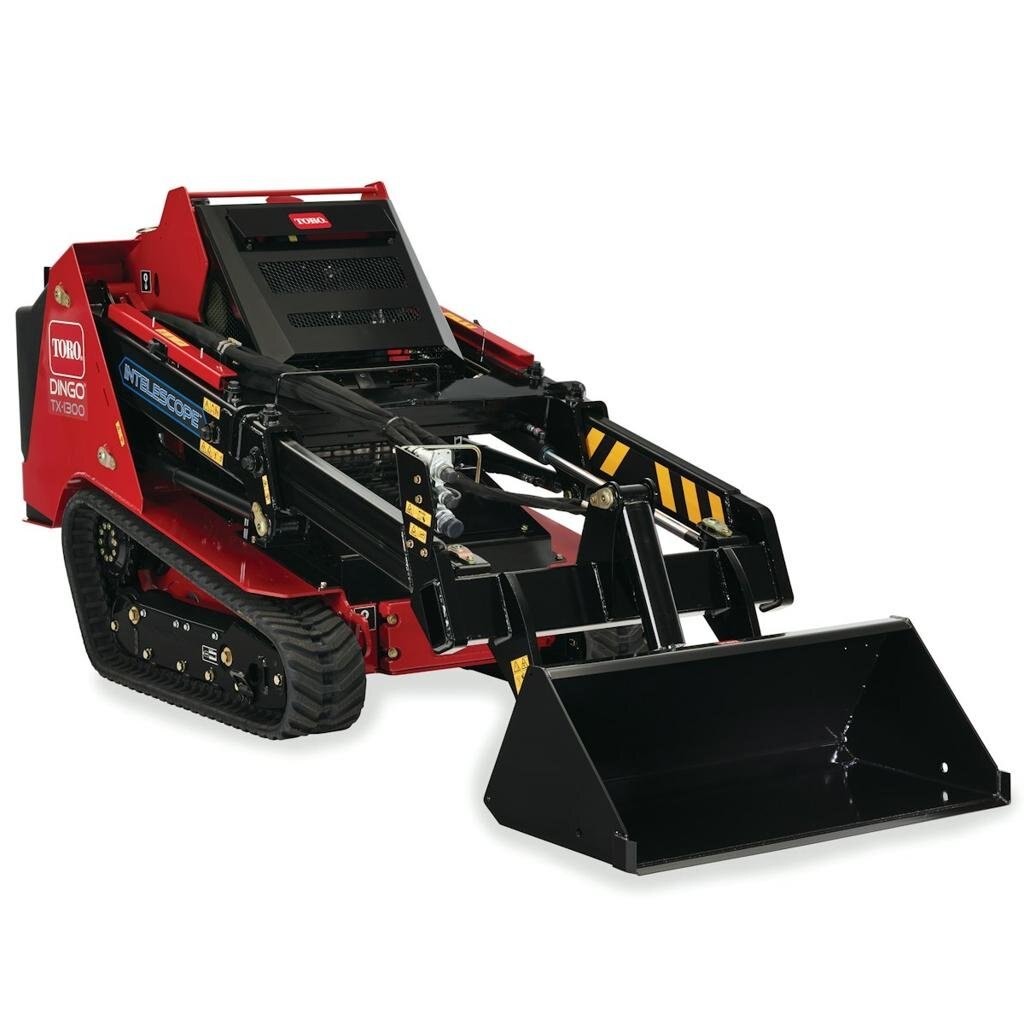

TORO DINGO TX 1300 TRACK LOADER 37HP YANMAR DIESEL

Model: 22370

Product Description

The Toro Dingo TX 1300 is a commercial compact track loader powered by a 37HP Yanmar 3TNV88C diesel engine. Designed for landscaping, hardscaping, tree care and construction applications, it features a 46-inch overall width and a rated operating capacity of 1,300 lbs. with the loader arms retracted. Its telescoping loader arms provide additional reach for loading trucks, dumpsters and other elevated work areas.

The dual hydrostatic pump traction system delivers forward and reverse speeds up to 4.7 mph. Toro's INTELESCOPE loader arm with SmartLoad provides 26 inches of additional reach and a maximum hinge-pin height of 109.2 inches. The operator platform features intuitive traction controls, thumb-operated telescoping and auxiliary functions, and an auxiliary hydraulic pedal for operating compatible attachments.

Key Features

• Equipment Type: Commercial compact track loader

• Engine: Yanmar 3TNV88C, 37HP Tier IV diesel

• Drive System: Dual hydrostatic pump traction

• Maximum Forward Speed: 4.7 mph

• Maximum Reverse Speed: 4.7 mph

• Rated Operating Capacity: 1,300 lbs. with loader arms retracted; 618 lbs. extended

• Tipping Capacity: 3,714 lbs.

• Loader Arms: INTELESCOPE telescoping radial-lift arms with SmartLoad

• Maximum Hinge-Pin Height: 109.2 inches with loader arms extended

• Additional Reach: 26.7 inches when fully raised

• Hydraulic System: 3,200 PSI operating pressure and 14.3 GPM auxiliary hydraulic flow

• Fuel Capacity: 11 gallons

• Track System: MERT tracks with TF-style tread, 9.1-inch track width

• Overall Dimensions: 46" W x 84.9" L x 56.5" H without bucket

• Operating Weight: 3,858 lbs.
