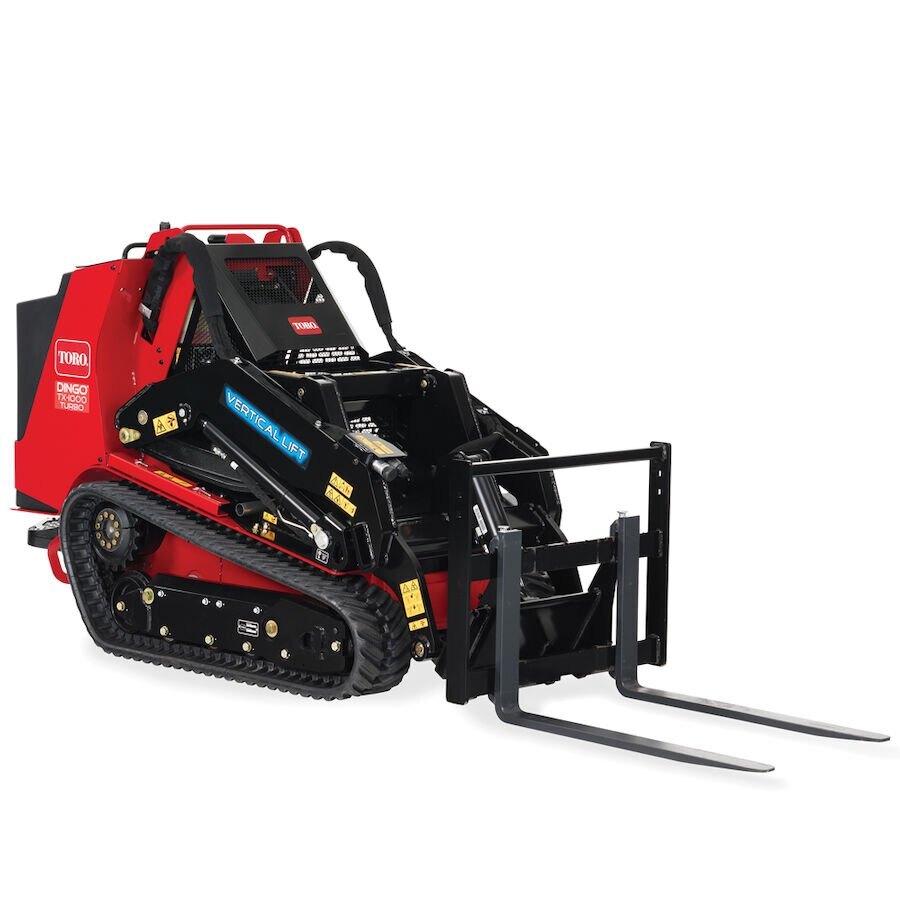

TORO DINGO TX 1000 TURBO WIDE TRACK LOADER 23.2HP YANMAR DIESEL

Model: 22588

Product Description

The Toro Dingo TX 1000 TURBO Wide Track is a commercial compact track loader powered by a 23.2HP Yanmar 3TNV80FT turbocharged diesel engine. Designed for landscaping, construction, hardscaping and material-handling applications, it features a 1,000-pound rated operating capacity, a 39.9-inch overall width and 9.1-inch-wide tracks for improved traction and stability.

The dual hydrostatic pump traction system provides forward and reverse speeds up to 4.1 mph. Toro's Smart Power system automatically adjusts traction speed to manage engine, auxiliary hydraulic and traction torque. The loader features an 81-inch hinge-pin height, a digital display, intuitive traction controls and an auxiliary foot pedal that maintains hydraulic flow to compatible attachments.

Key Features

• Equipment Type: Commercial compact track loader, wide-track configuration

• Engine: Yanmar 3TNV80FT turbocharged diesel, 23.2HP

• Drive System: Dual hydrostatic pump traction

• Maximum Forward Speed: 4.1 mph

• Maximum Reverse Speed: 4.1 mph

• Rated Operating Capacity: 1,000 lbs.

• Hydraulic System: 3,000 PSI operating pressure

• Auxiliary Hydraulic Flow: 13.2 GPM high flow; 4.9 GPM low flow

• Fuel Capacity: 10.25 gallons

• Track System: 9.1-inch-wide MERT tracks with turf-friendly tread

• Ground Pressure: 4.1 PSI

• Maximum Hinge-Pin Height: 81 inches

• Dump Height: 60.3 inches with standard bucket

• Operating Weight: 2,911 lbs.

• Additional Features: Smart Power automatic traction adjustment, digital display and auxiliary hydraulic foot pedal
