TORO DINGO HIGH TORQUE AUGER POWER HEAD 30"

Model: 22805

Product Description

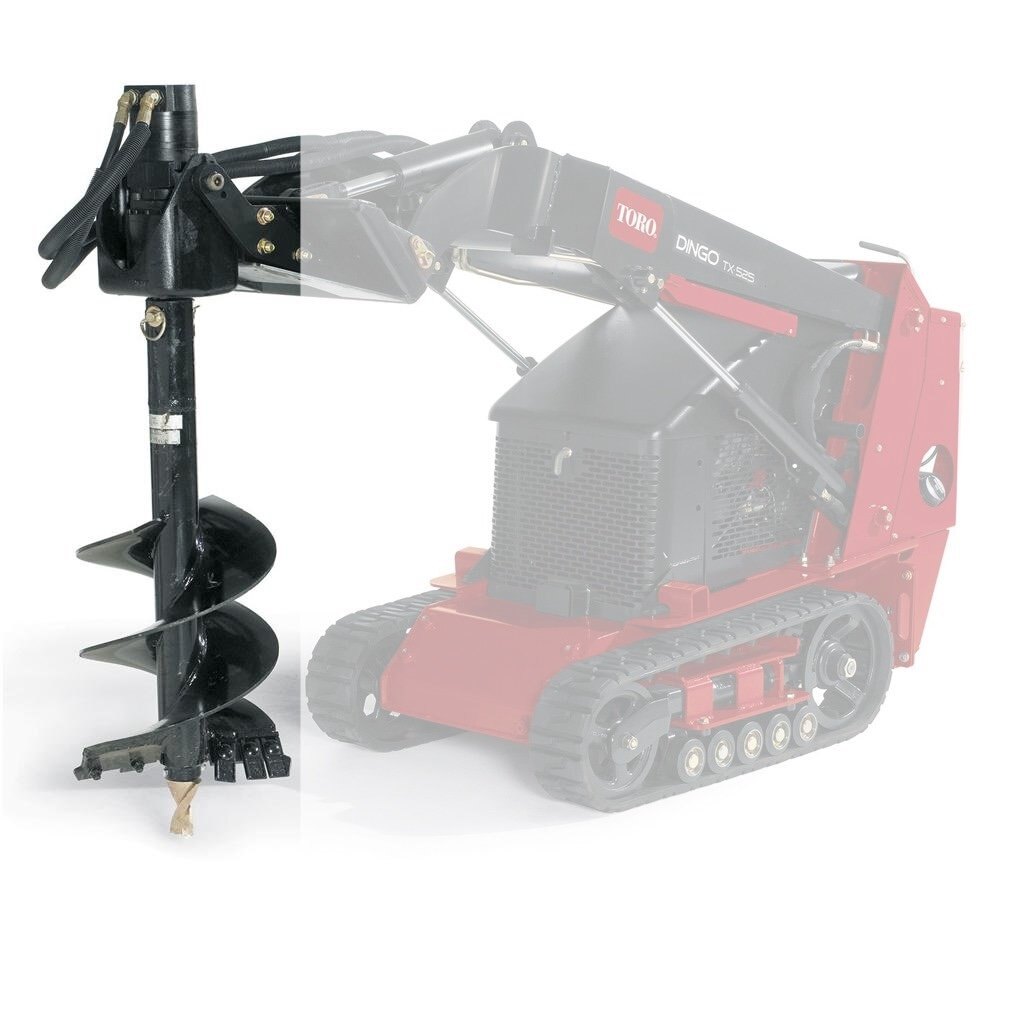

The Toro Dingo High Torque Auger Power Head 22805 is a hydraulically powered drilling attachment designed for compatible Toro Dingo compact utility loaders. It accommodates auger bits up to 30 inches in diameter and is intended for digging holes for fence posts, footings, trees and other construction and landscaping applications.

The direct planetary drive delivers high torque at lower rotational speeds for drilling through clay, gravel and other challenging soil conditions. A single-direction pivot provides front-to-back movement for controlling the auger during operation, while the horizontal lockout allows the attachment to operate compatible accessories. The power head connects to the loader through Toro's Dingo quick-attach mounting system.

Key Features

• Attachment Type: High-torque hydraulic auger power head

• Maximum Auger Bit Diameter: 30 inches

• Compatible Auger Bit Sizes: 6 to 30 inches

• Maximum Digging Depth: Up to 6 feet with appropriate equipment

• Drive System: Direct planetary gear drive

• Maximum Torque: 1,514 ft-lb at 3,000 PSI

• Auger Speed: 54 RPM at 11 GPM

• Output Shaft: 2⅝-inch round shaft

• Pivot Configuration: Single-direction, front-to-back pivot

• Mounting System: Toro Dingo quick-attach mounting plate

• Mounting Frame: Fabricated, welded steel

• Hydraulic Connections: Two high-pressure hoses with flush-face quick couplers

• Overall Dimensions: 24.3" W x 15.8" L x 23.3" H

• Attachment Weight: 182 lbs.

• Additional Features: Horizontal lockout for compatible accessories
