TORO GRANDSTAND HDX 60" 37HP BRIGGS & STRATTON VANGUARD EFI OIL GUARD

Model: 72514

Product Description

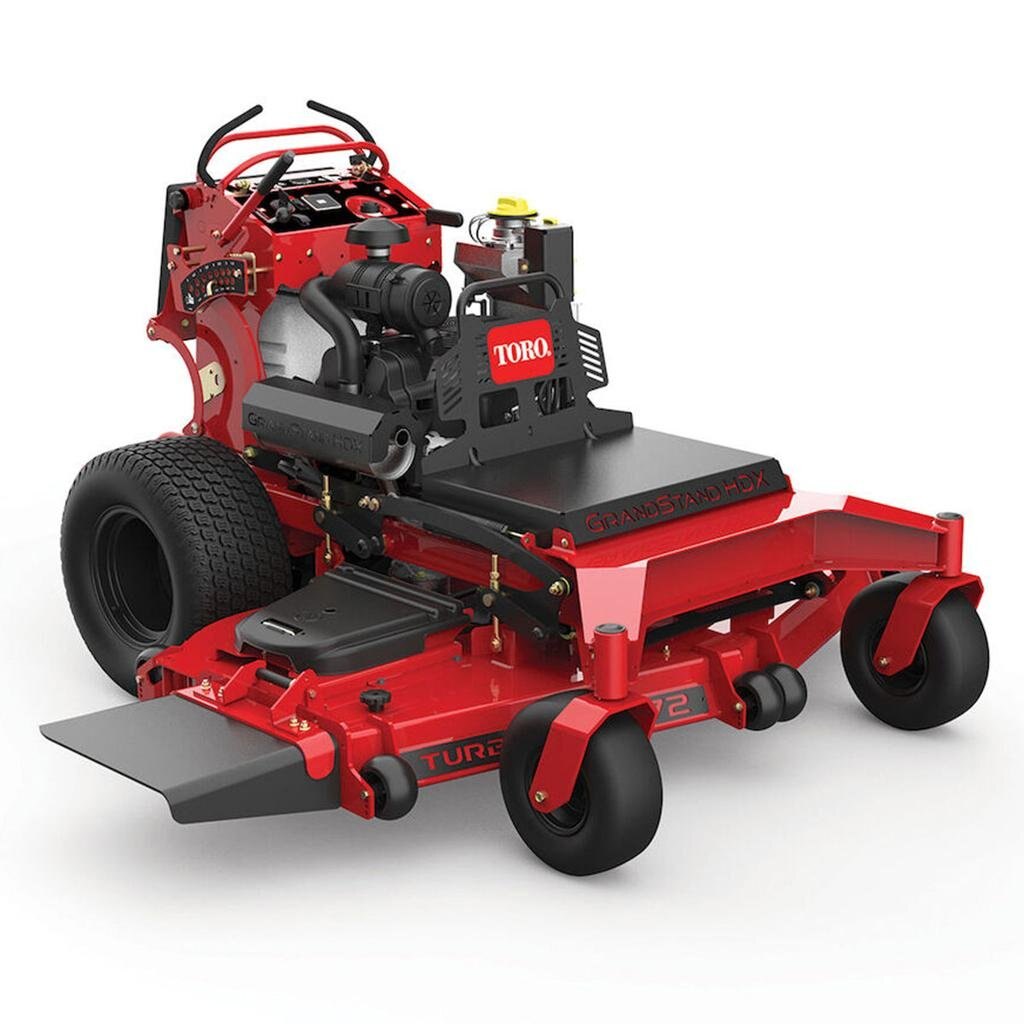

The Toro GrandStand HDX 72514 is a commercial stand-on zero-turn mower powered by a 37HP, 993cc Briggs & Stratton Vanguard EFI engine with Oil Guard. Designed for professional landscaping and commercial mowing operations, it features a 60-inch, 7-gauge TURBO FORCE cutting deck with a reinforced I-beam front end and adjustable discharge baffle.

The Tuff Torq TZT13s hydrostatic drive system delivers forward speeds up to 12 mph and reverse speeds up to 5 mph. The foldable operator platform features self-adjusting suspension and a spacious standing area for operator comfort. Additional features include 24-inch drive tires, a 10.5-gallon fuel tank and removable fuel tank access for servicing the engine and hydraulic components.

Key Features

• Cutting Width: 60 inches

• Cutting Deck: 7-gauge steel TURBO FORCE 2 with bull-nose bumper

• Engine: Briggs & Stratton Vanguard EFI, 37HP, 993cc

• Engine Technology: Electronic fuel injection with Oil Guard

• Drive System: Tuff Torq TZT13s 13cc hydrostatic transaxles

• Maximum Forward Speed: 12 mph

• Maximum Reverse Speed: 5 mph

• Cutting Height: 1.5 to 5 inches in 0.25-inch increments

• Fuel Capacity: 10.5 gallons

• Cutting System: Three-blade, side-discharge deck with tool-free adjustable discharge baffle

• Operator Platform: Foldable platform with self-adjusting suspension

• Drive Tires: 24" x 12"-12"

• Front Caster Tires: 13" x 6.5" flat-free semi-pneumatic

• Spindles: 9-inch cast-aluminum housings with greaseless ball bearings

• Equipment Weight: 1,120 lbs.
