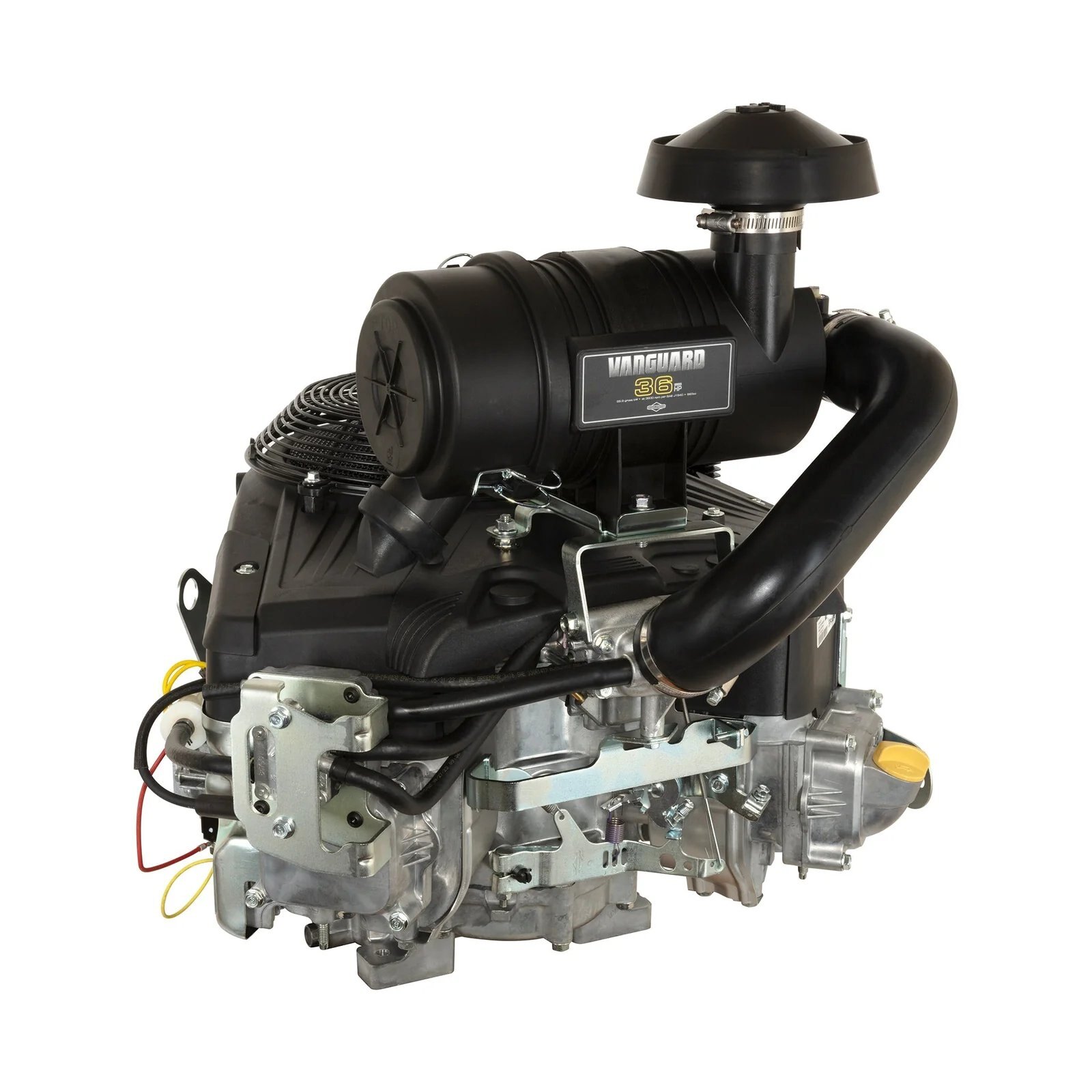

BRIGGS & STRATTON VANGUARD 36HP 993CC VERTICAL ENGINE

Model: 613777-0014-J1

Product Description

The Briggs & Stratton Vanguard 613777-0014-J1 is a 36 HP, 993cc vertical-shaft engine designed for commercial and industrial outdoor power equipment applications. This Vanguard Big Block V-Twin features an overhead-valve design, cast-iron cylinder sleeves and a vertical 1-1/8-inch crankshaft.

The engine is equipped with a full-pressure lubrication system with a spin-on oil filter, 20-amp charging system, electric start, fuel pump and oil cooler. The crankshaft measures 1-1/8 inches in diameter by 4-1/2 inches long and features a 1/4-inch keyway with a 7/16-20 tapped end.

Key Features

• Briggs & Stratton Vanguard Big Block engine
• Exact model: 613777-0014-J1
• 36 HP gross horsepower
• 993cc displacement
• V-Twin, two-cylinder configuration
• Vertical-shaft design
• Overhead Valve (OHV) configuration
• Dura-Bore cast-iron cylinder sleeve
• Full-pressure lubrication system
• Spin-on oil filter
• Oil cooler
• 20-amp charging system
• Electric start
• 1-1/8" x 4-1/2" vertical crankshaft
• 1/4" keyway and 7/16-20 tapped crankshaft end
• Cyclonic air filtration
• Maximum engine speed of 3,600 RPM
• 80 oz. oil capacity
