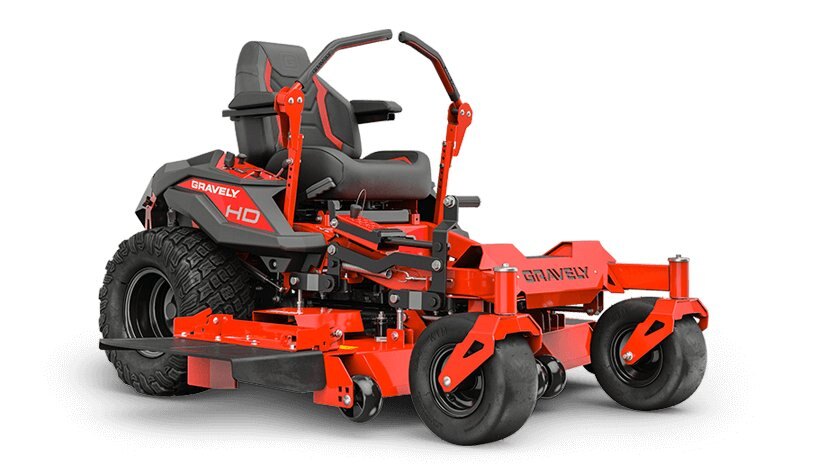

GRAVELY ZT HD 52" 23HP KAWASAKI

Model: Gravely 991277

Product Description

The Gravely ZT HD 52 is a residential zero-turn mower equipped with a 52-inch fabricated X-Factor 3 deck and a 23 HP Kawasaki FR691V engine. Its fully welded tubular frame and commercial-standard components are designed for homeowners who want a durable zero-turn mower for residential lawn care.

The mower uses Hydro-Gear ZT-3100 hydrostatic transaxles with maximum speeds of approximately 8 MPH forward and 4 MPH reverse. It features a 7-gauge fabricated deck, foot-operated deck lift, 15 cutting positions from 1.5 to 5 inches, forged aluminum spindle housings, a 22-inch high-back seat with padded armrests, and 19.3-gallon fuel capacity.

Key Features

• 52-inch fabricated X-Factor 3 cutting deck
• 7-gauge steel deck construction
• Kawasaki FR691V engine
• 23 HP engine rating
• 726 cc engine displacement
• Hydro-Gear ZT-3100 hydrostatic transaxles
• Approximately 8 MPH maximum forward speed
• Approximately 4 MPH maximum reverse speed
• 5.1-gallon fuel capacity
• 1.5 to 5-inch cutting-height range
• 15 cutting-height positions
• 18,136 FPM blade tip speed
• Forged aluminum spindle housings
• Ball-bearing spindle assemblies
• Electric Warner deck engagement
• Foot-operated deck lift
• Fully welded tubular frame
• 22-inch high-back seat
• Padded armrests
• 22 x 11-10 aggressive-tread rear tires
• 13 x 6.5-6 smooth pneumatic front tires
