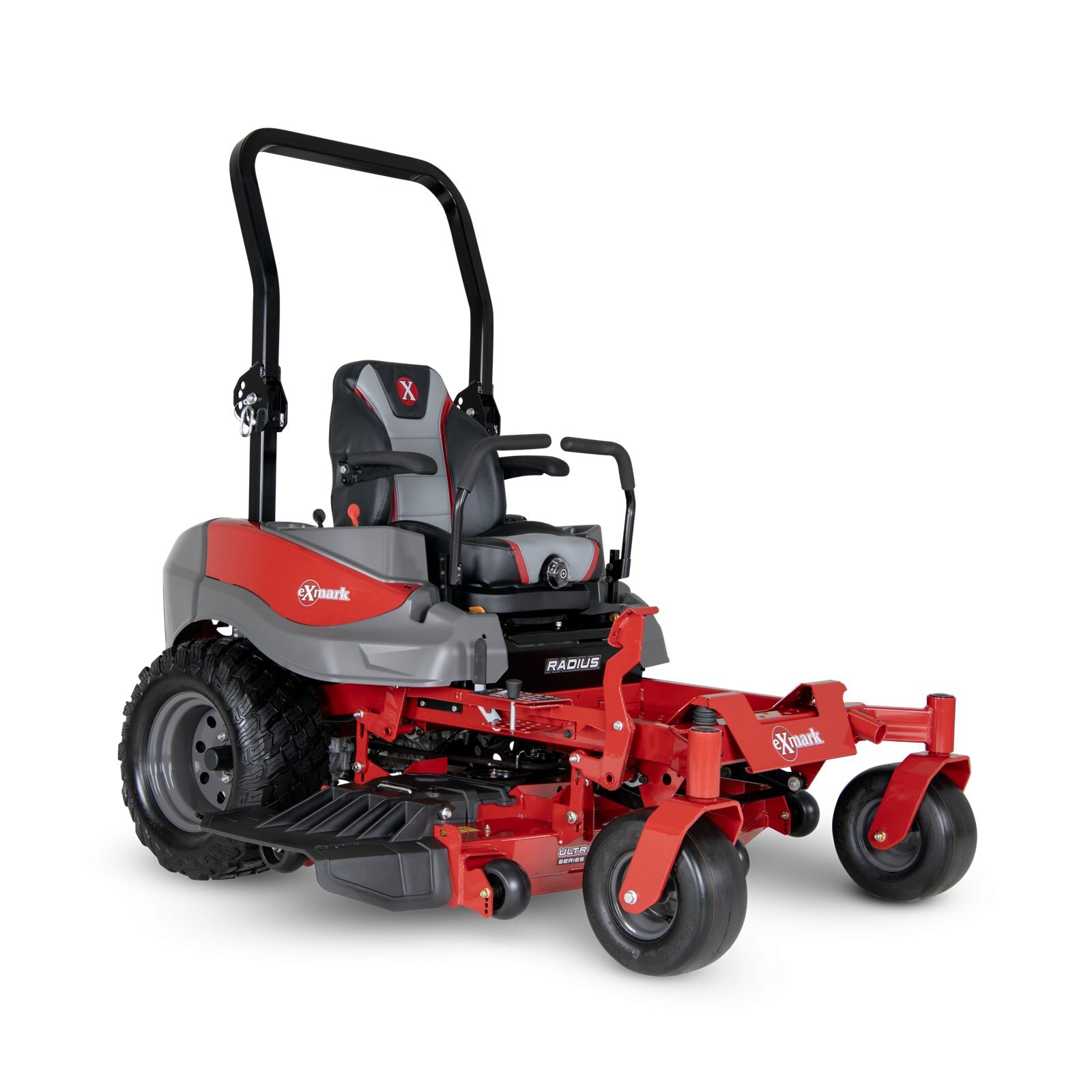

EXMARK RADIUS S-SERIES 52" 23HP KAWASAKI

Model: Exmark RDS691GKA523A3

Product Description

The Exmark Radius S-Series RDS691GKA523A3 is a zero-turn mower equipped with a 52-inch full-floating UltraCut Series 3 side-discharge deck and a 23 HP Kawasaki FR691 V-Twin engine. The 691cc gasoline engine and 52-inch cutting deck provide a rated mowing capacity of approximately 3.77 acres per hour, making this model suited for home, acreage, and professional mowing applications.

The Hydro-Drive system uses dual Hydro-Gear ZT-3100 hydrostatic transmissions with integrated cooling fans and reservoirs, providing speeds up to 9 mph forward and 4.5 mph reverse. Operator comfort features include a deluxe full-suspension seat with 3 inches of travel and flip-up armrests, while the UltraCut Series 3 deck uses Exmark Flow-Control baffles, sealed non-greasable spindle assemblies, and a four-point floating deck suspension.

Key Features

• 52" full-floating UltraCut Series 3 side-discharge deck
• 23 HP Kawasaki FR691 V-Twin engine
• 691cc engine displacement
• 7-gallon fuel capacity
• Dual Hydro-Gear ZT-3100 hydrostatic transmissions
• Integrated hydraulic pumps, motors, cooling fans, and reservoirs
• Up to 9 mph forward and 4.5 mph reverse
• 1.5"–5.0" cutting-height range
• 0.25" cutting-height increments
• Exmark Flow-Control baffles
• 10-gauge formed and continuously seam-welded deck top
• 7-gauge deck side skirt with four-point suspension
• Sealed, non-greasable spindle assemblies
• Double-capture anti-scalp rollers
• Deluxe two-tone bolstered suspension seat with 3" travel
• Flip-up armrests
• Hydraulically dampened twin-lever steering with two-position height adjustment
• 23 x 9.5-12 drive tires
• Foldable 2-post ROPS with seat belt
• Tool-free removable floor pan and belt shields
• Integrated front-frame jack receiver
• Automatic-actuated parking brake
• 12-volt battery with 15-amp alternator
