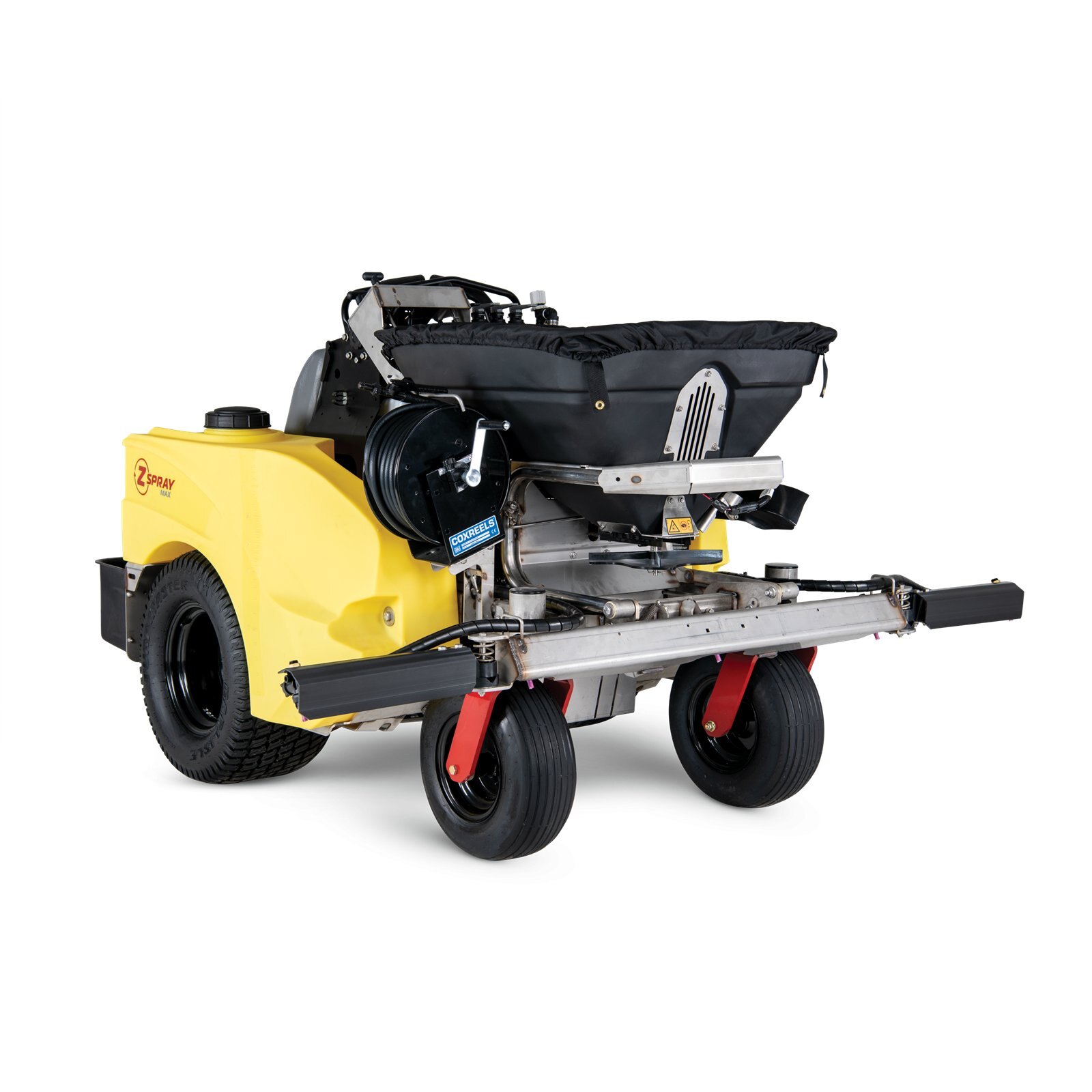

EXMARK Z-SPRAY Z-MAX 52" 23HP VANGUARD

Model: Exmark ZSX5260

Product Description

The Exmark Z-Spray Z-Max ZSX5260 is a commercial stand-on fertilizer spreader and sprayer designed for professional turf-care applications. It features a 52-inch working width, a 23 HP Vanguard 627cc engine, a 250-pound fertilizer hopper, and two 30-gallon spray tanks for a total 60-gallon liquid capacity. The machine is designed to simultaneously apply liquid and granular materials across residential, commercial, and municipal turf areas.

The ZSX5260 uses a Hydro-Gear ZT-5400 drive system with speeds up to 10 mph and a 5.3 GPM spray pump. Its spray system provides selectable 2-, 6-, 8-, and 10-foot spray widths, while the spreader system provides up to a 25-foot spread width. Additional features include a stainless-steel frame, 16 x 6.5-8 ribbed front tires, 24 x 12-12 rear tires, and a stand-on operator configuration.

Key Features

• 52" Z-Spray Max stand-on spreader-sprayer
• 23 HP Vanguard 627cc engine
• 250-lb. fertilizer hopper capacity
• Two 30-gallon spray tanks
• 60-gallon total spray capacity
• 5.3 GPM spray pump
• 2', 6', 8' and 10' selectable spray widths
• Up to 25' spread width
• Up to 10 mph ground speed
• Hydro-Gear ZT-5400 transmission
• Stainless-steel frame
• 16 x 6.5-8 ribbed front tires
• 24 x 12-12 rear tires
• 54" gate width
• 5-gallon fuel capacity
• 912-lb. listed curb weight
• 12 VDC, 2 HP hopper motor
• Stand-on commercial turf-care configuration
• Designed for simultaneous liquid and granular applications
