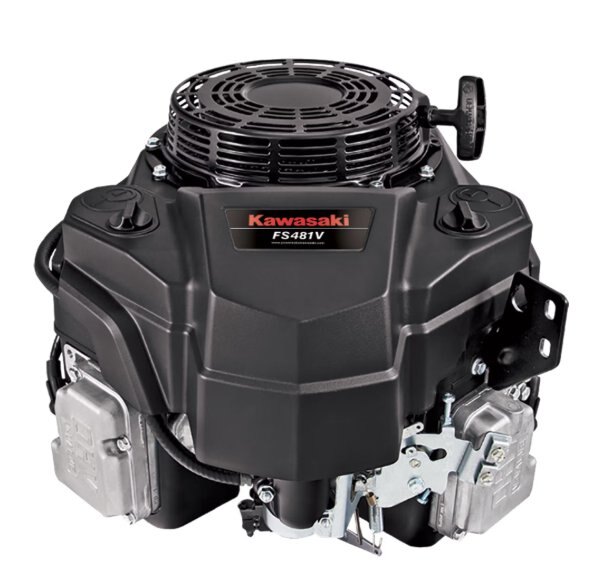

KAWASAKI FS481V-FS01S 14.5HP 603CC V-TWIN ENGINE

Model: Kawasaki FS481V-FS01S

Product Description

The Kawasaki FS481V-FS01S is a 14.5 HP vertical-shaft gasoline engine designed for lawn and turf equipment. It features a 603cc 90° V-twin, forced-air-cooled 4-cycle overhead V-valve design, electronic spark ignition, and Kawasaki Critical Power certification.

The FS01S configuration uses a recoil starter, 1" x 3-5/32" keyed vertical crankshaft, fuel pump, and 13-amp alternator. It also features pressurized lubrication, automatic compression release, dual-element air filtration with a reinforced primary filter, internally vented carburetor, rotating grass-chopper screen, and cast-iron cylinder liners. The exact FS481V-FS01S is documented as an earlier configuration replaced by the FS481V-S01-S.

Key Features

• Kawasaki FS481V-FS01S
• 14.5 HP at 3,600 RPM
• 603cc displacement
• 90° V-twin
• 4-cycle overhead V-valve design
• Vertical shaft
• Forced-air cooling
• 1" x 3-5/32" keyed crankshaft
• Recoil starter
• Fuel pump
• 13-amp alternator
• Electronic spark ignition
• Pressurized lubrication system
• Automatic compression release
• Dual-element air filtration with reinforced primary filter
• Internally vented carburetor
• Rotating grass-chopper screen
• Cast-iron cylinder liners
• 30.9 ft-lbs. maximum torque at 1,800 RPM
• 1.8 U.S. qt. oil capacity with filter
• 80.9 lb. dry weight
• Muffler not included
