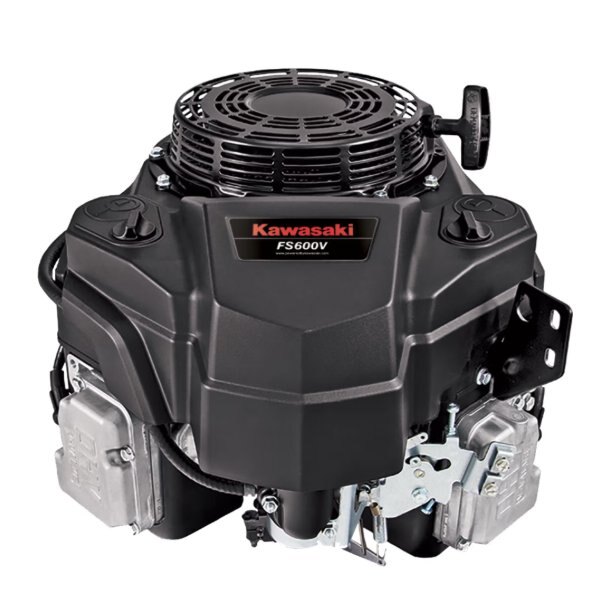

KAWASAKI FS600V-FS04S 18.5HP 603CC V-TWIN ENGINE

Model: Kawasaki FS600V-FS04S

Product Description

The Kawasaki FS600V-FS04S is an 18.5 HP vertical-shaft gasoline engine designed as a Toro replacement configuration for lawn and turf equipment. It features a 603cc 90° V-twin, 4-cycle OHV design, forced-air cooling, and electronic spark ignition.

The FS04S configuration is an electric-start engine with a 1" x 3-5/32" vertical crankshaft and Kawasaki's dual-element air filtration system. It also features pressurized lubrication, automatic compression release, internally vented carburetion, a rotating grass-chopper screen, cast-iron cylinder liners, and integrated clean-out ports.

Key Features

• Kawasaki FS600V-FS04S
• 18.5 HP at 3,600 RPM
• 603cc displacement
• 90° V-twin
• 4-cycle OHV
• Vertical shaft
• Forced-air cooling
• 1" x 3-5/32" crankshaft
• Electric start
• Electronic spark ignition
• Pressurized lubrication system
• Automatic compression release
• Dual-element air filtration with reinforced primary filter
• Internally vented carburetor
• Rotating grass-chopper screen
• Cast-iron cylinder liners
• Integrated clean-out ports
• 32.3 ft-lbs. maximum torque
• 1.8 U.S. qt. oil capacity with filter
• 80.9 lb. dry weight
