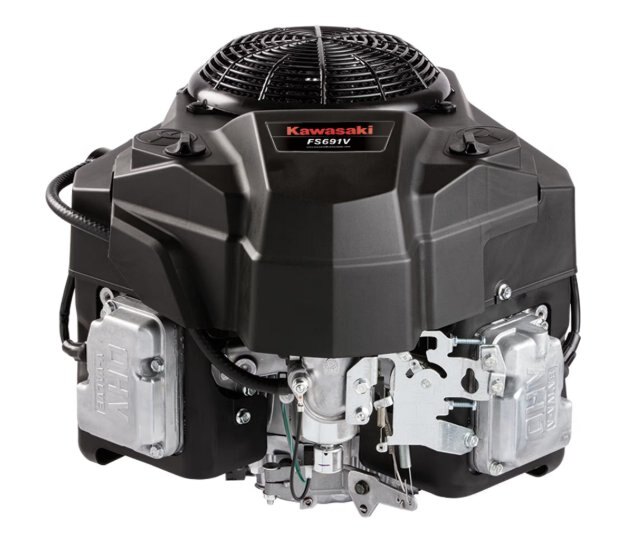

KAWASAKI FS691V-FS08S 23HP 726CC V-TWIN ENGINE

Model: Kawasaki FS691V-FS08S

Product Description

The Kawasaki FS691V-FS08S is a 23 HP vertical-shaft gasoline engine designed for zero-turn mowers, lawn tractors, and other turf equipment. It features a 726cc 90° V-twin, 4-cycle overhead V-valve design, forced-air cooling, and electronic spark ignition.

The FS08S configuration uses a Bendix electric starter and a dual-element air filtration system with a reinforced primary filter. It also features pressurized lubrication, automatic compression release, an internally vented carburetor with fuel shut-off solenoid, rotating metal grass-chopper screen, cast-iron cylinder liners, and integrated clean-out ports.

Key Features

• Kawasaki FS691V-FS08S
• 23 HP at 3,600 RPM
• 726cc displacement
• 90° V-twin
• 4-cycle overhead V-valve design
• Vertical shaft
• Forced-air cooling
• Bendix electric starter
• Electronic spark ignition
• Pressurized lubrication system
• Automatic compression release
• Dual-element air filtration with reinforced primary filter
• Internally vented carburetor with fuel shut-off solenoid
• Rotating metal grass-chopper screen
• Cast-iron cylinder liners
• Integrated clean-out ports
• 39.6 ft-lbs. maximum torque at 2,200 RPM
• 2.2 U.S. qt. oil capacity with filter
• 90.4 lb. dry weight
• 78mm x 76mm bore and stroke
• 8.2:1 compression ratio
