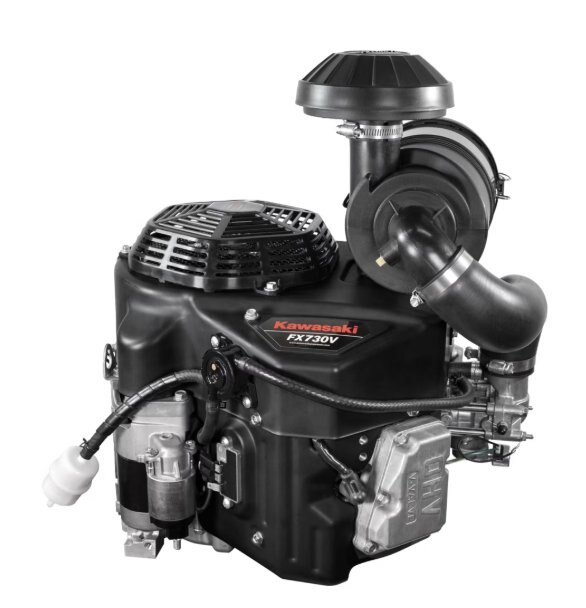

KAWASAKI FX730V-ES12S 23.5HP 726CC V-TWIN ENGINE

Model: Kawasaki FX730V-ES12S

Product Description

The Kawasaki FX730V-ES12S is a 23.5 HP vertical-shaft gasoline engine designed for commercial turf equipment and other demanding applications. It features a 726cc 90° V-twin, 4-cycle OHV design, forced-air cooling, and a 1" x 3-5/32" crankshaft.

The ES12S configuration features a heavy-duty shift-type electric starter, 15-amp charging system, and multi-stage canister air filtration. It also includes pressurized lubrication, electronic spark ignition, automatic compression release, cast-iron cylinder liners, a rotating metal grass-chopper screen, and a metal engine cover with integrated clean-out ports.

Key Features

• Kawasaki FX730V-ES12S
• 23.5 HP at 3,600 RPM
• 726cc displacement
• 90° V-twin
• 4-cycle OHV design
• Vertical shaft
• Forced-air cooling
• Heavy-duty shift-type electric starter
• 15-amp charging system
• 1" x 3-5/32" crankshaft
• Counterclockwise shaft rotation
• Pressurized lubrication system
• Electronic spark ignition
• Automatic compression release
• Multi-stage canister air filter
• Cast-iron cylinder liners
• Rotating metal grass-chopper screen
• Metal engine cover with integrated clean-out ports
• 39.7–39.9 ft-lbs. maximum torque at 2,400 RPM
• 2.2 U.S. qt. oil capacity with filter
• 101.4 lb. dry weight
• 78mm x 76mm bore and stroke
• 8.2:1 compression ratio
• Muffler not included
