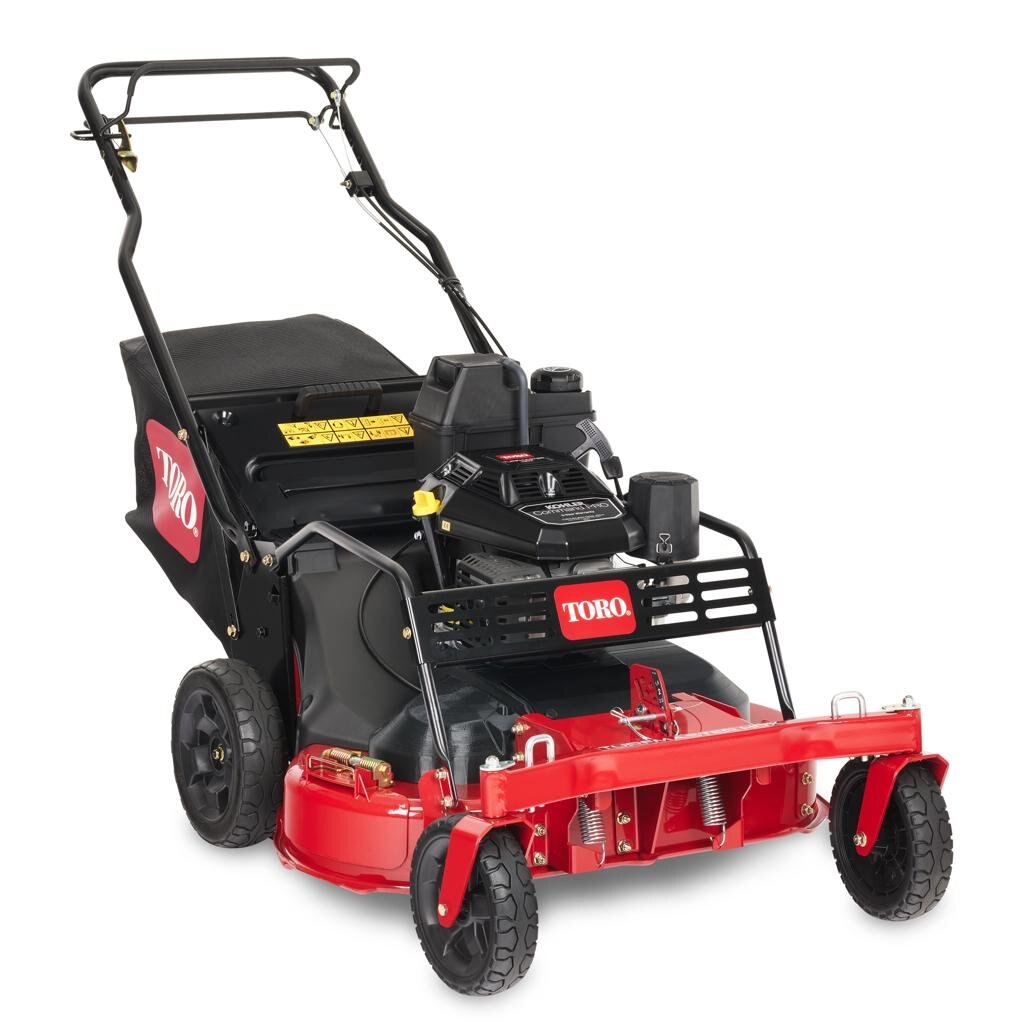

TORO TURFMASTER HDX 30" 224CC KOHLER

Model: 22236

Product Description

The Toro TurfMaster HDX 22236 is a commercial self-propelled walk-behind mower equipped with a 30-inch cutting deck and a 224cc Kohler Command PRO CV224 engine. Designed for professional landscape contractors, it features a 13-gauge steel deck with a cast-aluminum frame and front caster wheels for maneuvering around landscaping and maintaining residential and commercial properties.

The heavy-duty rear-wheel-drive transmission delivers a maximum forward speed of 4 mph. The front caster wheels can be locked for straight-line mowing, while the Blade Brake Clutch allows operators to stop the blades without shutting off the engine. A two-point cutting height adjustment system, split deck belt cover and 2.5-bushel grass bag support efficient mowing and routine maintenance.

Key Features

• Cutting width: 30 inches

• Cutting deck: 13-gauge steel with cast-aluminum frame

• Engine: Kohler Command PRO CV224

• Engine displacement: 224cc

• Drive system: Heavy-duty self-propelled, rear-wheel drive

• Maximum forward speed: 4 mph

• Cutting height range: 1.5 to 5 inches in 0.5-inch increments

• Cutting height adjustment: Two-point

• Fuel capacity: 1 gallon

• Cutting configurations: Mulching, rear bagging and side discharge

• Grass bag capacity: 2.5 bushels

• Blade engagement: Blade Brake Clutch (BBC)

• Front wheels: 9" x 2" locking caster wheels with precision ball bearings

• Rear wheels: 10.5" x 3" rubber tires with co-polymer wheels

• Additional features: Dual-blade cutting system, split deck belt cover and recoil starting system
