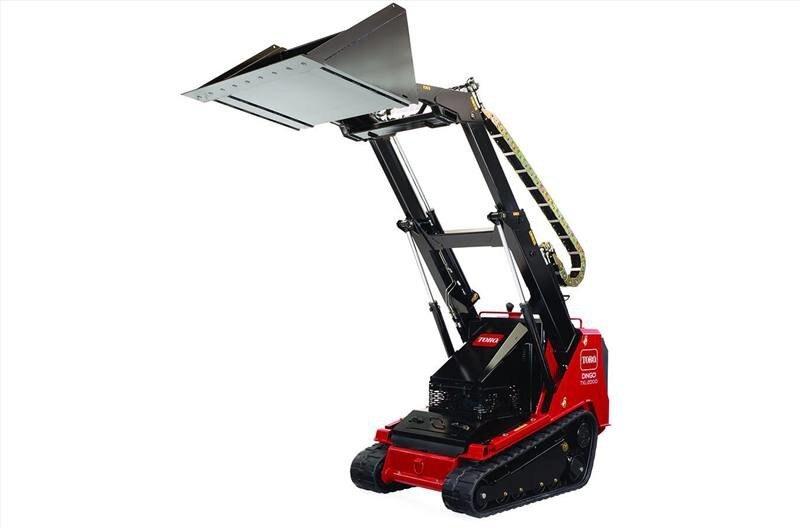

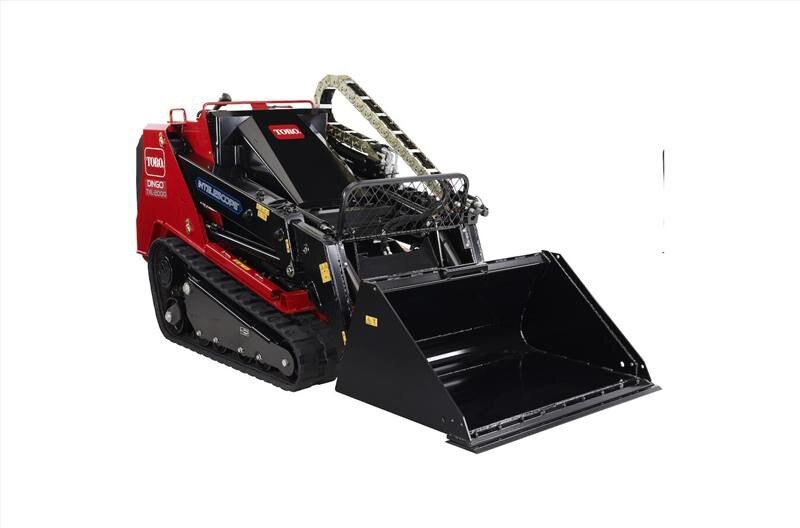

TXL 2000 Telescoping Track Loader

Description

The Dingo TXL 2000 has you covered. No need for separate machines to unload, haul, dig and place material; the Dingo TXL 2000 can do it all. With the benefits of a compact utility loader, mini excavator and compact track loader rolled into one piece of equipment, it’s a smart solution that’s in a category of its own.

Specifications

• Air Filter: Two-stage, heavy-duty, remote
• Cooling System: Liquid Cooled
• Dump Angle: 46.3 deg
• Dump Height 88.9 in. / 225.8 cm
• Engine Horsepower: 49.6 hp (37 kW)
• Engine Make: Kubota
• Engine Model: D1803
• Fuel Tank: 18.3 gal. / 69.3 L
• Fuel Type: Diesel
• Ground Clearance: 6.3 in. / 16.0 cm
• Ground Pressure 5.3 psi
• Ground Speed - Forward: Up to 5.4 mph / 8.6 km/h
• Ground Speed - Reverse: Up to 5.4 mph / 8.6 km/h
• Height: 67.8 in. / 172.2 cm
• Height - With Bucket: 67.8 in. / 172.2 cm
• Hinge Pin Height: 123.4 in. / 313.4 cm
• Hinge Pin Height - Extended: 123.4 in. / 313.4 cm
• Hinge Pin Height - Retracted: 98.6 in. / 250.4 cm
• Hydraulic Flow - Auxiliary: 21.4 GPM
• Hydraulic Flow - Traction: 21.5 GPM (81.4 LPM)
• Hydraulic Pressure Auxiliary: 3,000 PSI
• Hydraulic Pressure Traction: 4,350 PSI
• Length: 98.8 in. / 250.9 cm
• Length - With Bucket: 136.9 in. / 347.7 cm
• Max Operating Height: 67.8 in. / 172.2 cm
• Oil Capacity: 7.4 qt / 7 L
• Rated Operating Capacity - Extended*: 920 lbs / 417 kg
• Rated Operating Capacity - Retracted* 2,000 lbs / 907 kg
• Reach - Fully Raised: 45.2 in. / 114.8 cm
• Reservoir Capacity: 15.25 gal. / 57.7 L
• Tip Capacity: 5,715 lbs / 2,592 kg
• Track Length: 162.2 in. / 411.9 cm
• Track Width: 11.8 in. / 29.9 cm
• Tracks: Sprocket-drive, 6 road wheels per side
• Traction: Dual Hydrostatic Pump
• Weight: 6,690 lbs / 3,034.5 kg
• Wheelbase: 53.7 in. / 136.4 cm
• Width: 55 in. / 139.7 cm
• Width - With Bucket: 55 in. / 139.7 cm

Features

• Outstanding 360-degree visibility
• Outstanding reach and lift height
• Telescoping Arms: A Toro-exclusive telescoping arm design allows the operator to lift loads up to 123” high (hinge pin height) and reach out 44” for placement and removal of jobsite materials.
• Superior Visibility: A dedicated stand-on machine offers superior 360° visibility for optimized jobsite performance and awareness.
• Compact Footprint: A 54” wide frame allows the machine to access smaller spaces that larger machines are not able to.
• 2,000 lbs. ROC: An industry leading 2,000 lbs. rated operating capacity allows the operator to handle many jobsite materials suited for larger machines.
• Controls: Toro’s exclusive traction control design allows operator’s of all skill levels to operate the machine with ease and precision. The loader arm control is designed to allow not only loader arm function control, but has the telescoping function, proportional auxiliary control, and directional left/right control for applicable Toro TXL 2000 attachments.
• Ease of Access: The dedicated stand-on platform allows the operator to step-on and step-off the machine with ease and comfort to allow for enhanced jobsite efficiencies – not having to enter/exit a cab.



  Engine

  Engine Type	D1803
  Engine Manufacturer	Kubota
  Horsepower	49.6 hp
  Fuel Capacity	18.3 gal. (69.3 L)

  General

  Max Ground Speed	Foward/Reverse: Up to 5.4 mph
  Length	98.8 in. (250.9 cm)
  Width	55 in. (139.7 cm)
  Height	67.8 in. (172.2 cm)
  Weight	6,690 lb. (3,034.5 kg)
  Wheelbase	53.7 in. (136.4 cm)
