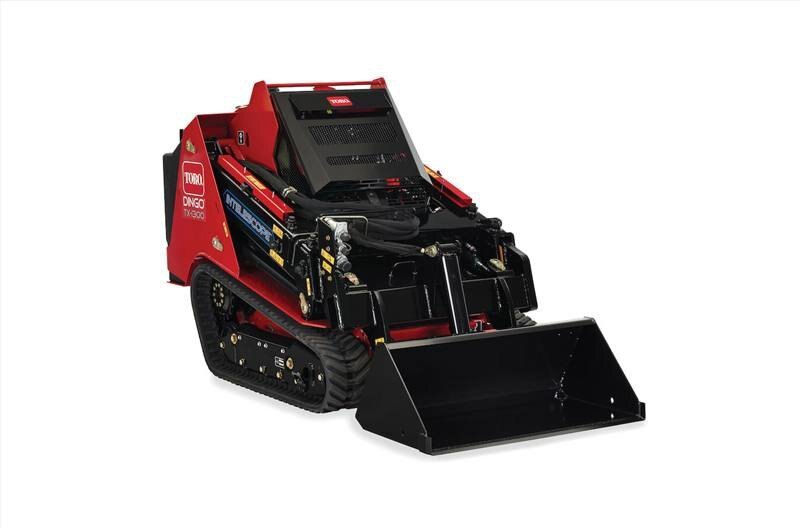

Toro TX 1300 Track Loader

Description

Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26" of reach, and the telescoped hinge-pin height of 109" means you can lift loads up and over the side of a dumpster or truck for maximum productivity. Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.

Specifications

• Air Filter: Remote dual element
• Cooling System: Combo Downflow Radiator and Oil Cooler, Independent Fuel
• Dump Angle: 38 deg
• Dump Height - Extended: 90.7 in. / 230.3 cm
• Dump Height - Retracted: 70.9 in. / 180.0 cm
• Engine Horsepower: 37 hp (27 kW)
• Engine Make: Yanmar
• Engine Model: 3TNV88C
• Fuel Tank: 11 gal. / 41.6 L
• Fuel Type: Diesel
• Ground Clearance: 5.9 in. / 14.9 cm
• Ground Pressure: 5.5 psi
• Ground Speed - Forward: Up to 4.7 mph / 7.6 km/h
• Ground Speed - Reverse: Up to 4.7 mph / 7.6 km/h
• Height: 56.5 in. / 143.5 cm
• Height - With Bucket: 56.5 in. / 143.5 cm
• Hinge Pin Height - Extended: 109.2 in. / 277.3 cm
• Hinge Pin Height - Retracted: 89.4 in. / 227.0 cm
• Hydraulic Flow - Auxiliary: 14.3 GPM
• Hydraulic Flow - Traction: 13.4 GPM
• Hydraulic Pressure: 3,200 psi
• Length: 84.9 in. / 215.6 cm
• Length - With Bucket: 103.1 in. / 261.8 cm
• Loader Arms: Radial
• Max Operating Height: 133 in. / 337.8 cm
• Oil Capacity: 5 qt / 4.7 L
• Rated Operating Capacity - Extended*: 618 lbs / 280.3 kg
• Rated Operating Capacity - Retracted*: 1,300 lbs / 589.6 kg
• Reach - Fully Raised: 26.7 in. / 67.8 cm
• Reservoir Capacity: 9.2 gal. / 34.8 L
• Tip Capacity: 3,714 lbs / 1,685 kg
• Track Length: 126.6 in. / 321.5 cm
• Track Width: 9.1 in. / 23.1 cm
• Tracks: MERT track with "TF" style tread
• Traction: Dual Hydrostatic Pump
• Weight: 3,858 lbs / 1,750 kg
• Wheelbase: 39 in. / 99.0 cm
• Width: 46 in. / 116.8 cm
• Width - With Bucket: 46 in. / 116.8 cm

Features

• Intelescope Loader Arm
• Quick Coupler System
• Patented traction control

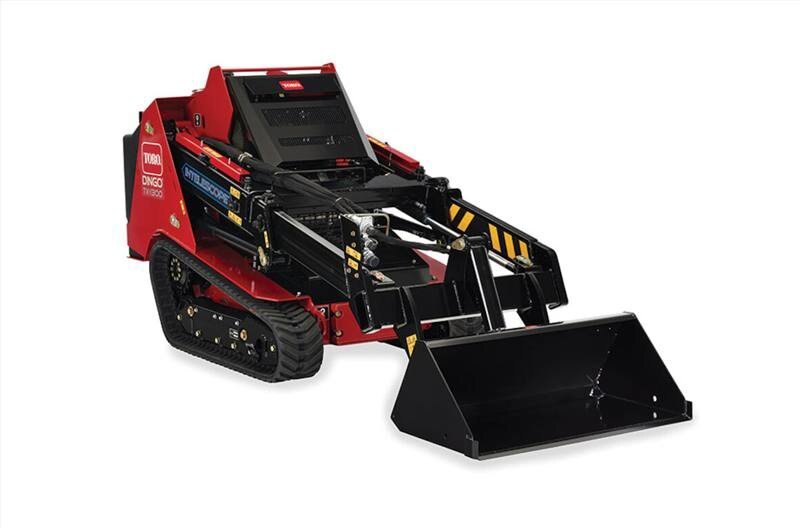

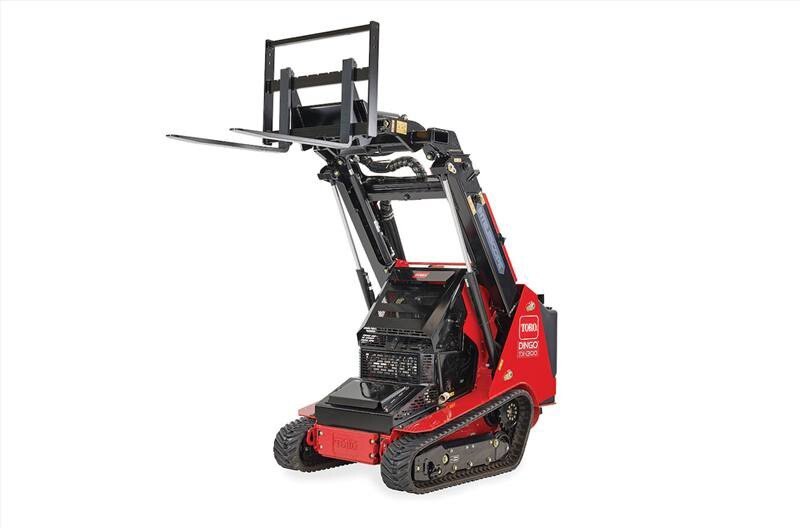

• Extra Reach: The Intelescope® loader arm with SmartLoad gives 26" of additional reach. The telescoped hinge-pin height of 109" allows loads to be lifted over the sides of dumpsters or trucks to maximize productivity.
• Outstanding ROC: The durable loader arm with improved q-tach casting, allows for a more durable loader arm design and up to 1,300 lbs of operating capacity.
• Quick Coupler System: The pressure relieving quick coupler system makes connecting and disconnecting attachments easier.
• Auxiliary Pedal: User friendly auxiliary pedal on an enlarged operator platform improves ease of engagement.

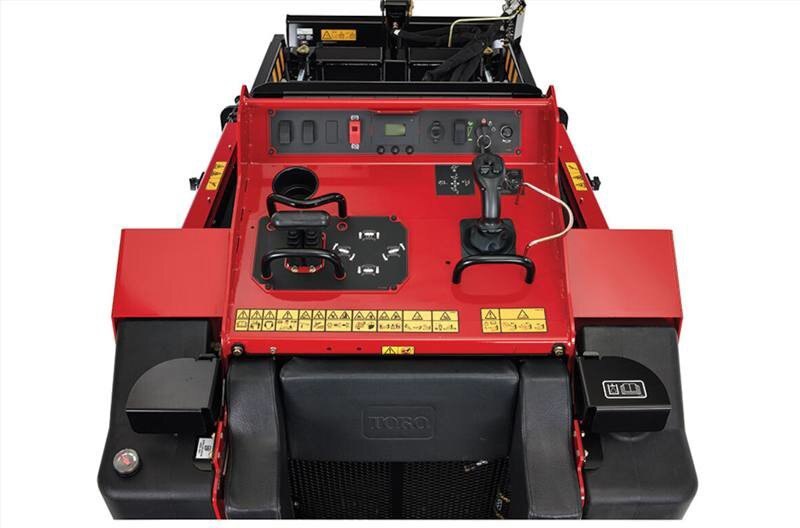

• Ease of Use: Toro patented traction control and integrated hydraulic operation in loader arm control.
